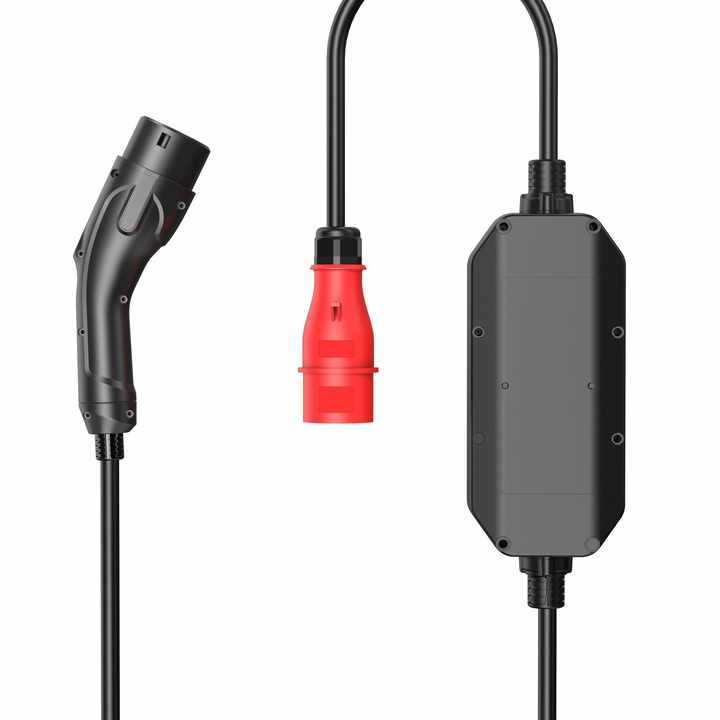

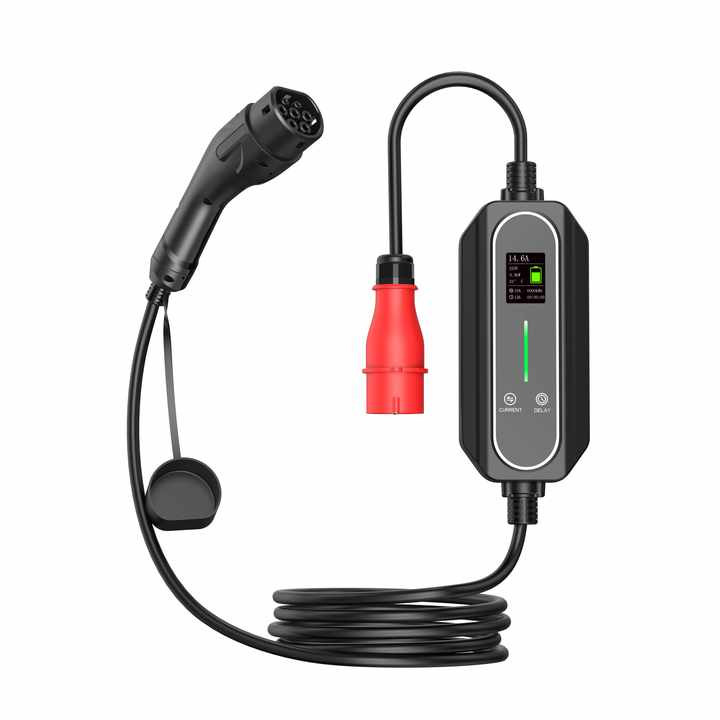

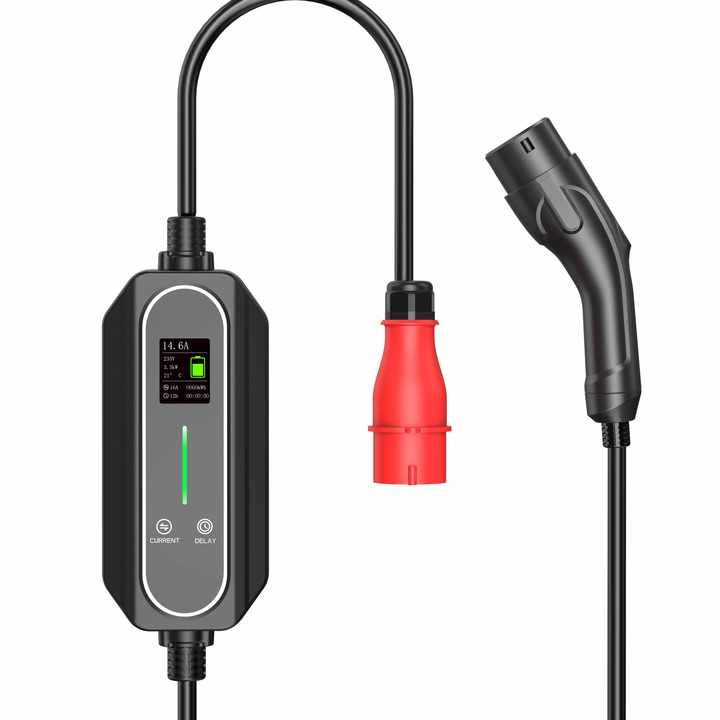

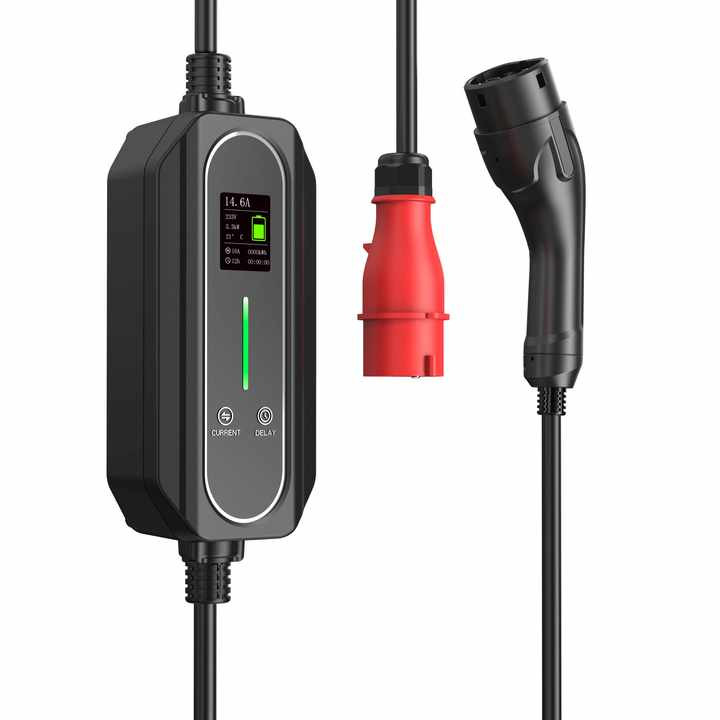

Portable electric car charger that fits into a standard 3-phase plug.
You can't destroy it because it's water and impact resistant:
- IP67 waterproof (can be immersed in water up to 1m)
- You can drive through it with a 2000 kg car, it won't damage it.
Compatible with all cars with a Type 2 connector. The charging time depends on the on-board inverter of your car.
| Warranty |
2 years |
| Brand |
RAEDIAN |
| Model downloadable pdf information |
22kW Portable EV Charger  |
| Guarantee |
2 years |
| Color |
Black |
| Controllability |
With the buttons on the charger |
| Control options |
stitch power selection - Start loading setting |
| Display |
OLED |
| Charging indicator |
Running LED on the front of the box |
| Output power |
Max. 22Kw (adjustable between 2.3 kW - 22 Kw in the following steps:
10A/16A/20A/24A/32A) |
| Output current |
AC (alternating current) |
| Input voltage |
380 volt |
| Input phase |
3 phase (3x32A) standard 3 phase connector |
| Charging cable length |
5 meters |
| Charging cable diameter |
16.8mm |
| Operating temperature range |
-25°C to +55°C |
| Storage temperature range |
-40°C to +80°C |
| Water resistance level |
IP67 |
| Fire resistance grade |
UL94-V0 |
| Physical load capacity |
It can withstand the weight of a 2000 kg car |
| Electric car connection standard |
Type 2 |
| Size |
260 x 93 x 58 cm |
| Weight |
4200gr |
| Compliance standards |
CE, TÜV, CB, UKCA, EN 62752: 2016+A1 IEC 61851 |
| Contents of the package |
Raedian Portable 22kW AC EV charger- 5m cable with Type 2 connector |
